特徴

仕様

Application: Sheet, Plates, Board

Plastic Processed: PVC

Condition: New

Screw Design: Double-screw

Twin Screw Type: Counter-rotating conical Twin-screw

Screw Material: 38CrMoAl

Screw diameter (mm): 80/156

Screw L/D Ratio: 28:1

Screw Speed (rpm): 35 rpm

Showroom Location: Pakistan, Bangladesh

Voltage: 380V/ 3P or As Customer Request

Dimension(L*W*H): 25mx2.5mx3.5m

Power (kW): 165

Weight: 20T

Warranty: 1 Year

Key Selling Points: Energy saving

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Marketing Type: New Product 2021

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty of core components: 1 Year

Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw

Name: PVC wave roofing sheet Production Line

Raw material: pvc

Keywords: PVC corrugated roof sheeting machinery

Color: Customers' Require

Motor: Siemens Beide

Inverter: ABB Inverter

Capacity: 300KG/H

Screw type: 80/156 Twin-screw extruder

Automatic Grade: Automtic

Whatsapp: +8616678786638

After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Pakistan, Bangladesh

証明: ISO9001:2008/CE

基本情報

証明: ISO9001:2008/CE

お支払配送条件

Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.

製品の説明

Product Description

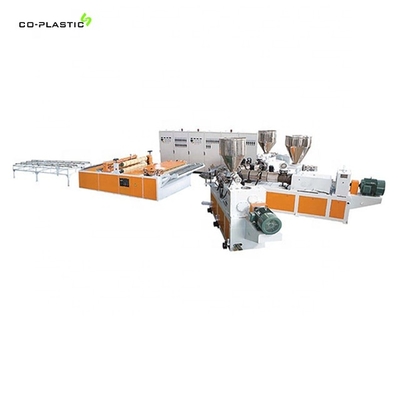

SY-HS Energy Saving PVC Wave Tile Making Machinery PVC Corrugated Roof Sheeting Machinery

PVC Wave Roofing sheet/Tile Extrusion Line is comprised by a single or twin conical screw extruder and corresponding wave plate forming machine, cutting machine, edge trimming machine, etc.

If replacing the relevant components, this line also can produce the PC transparent wave plate, PP wave panel, chequer plank,PVC,UPVC sheet, 3-layer co-extrusion color PC, PP, PVC wave plate.

Introduction

Wave plate has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.villa

Specification

Structure	Single layer	Double layers	Three layers	Four layers
Suitable material	UPVC	ASA/PMMA+UPVC	UPVC+UPVC foam +UPVC	ASA/PMMA+UPVC+UPVC foam +UPVC
Product width	720-1360mm	720-1360mm	720-1360mm	720-1360mm
Product thickness	0.8-3.0mm	1.0-3.0mm	1.2-3.0mm	2.0-4.5 mm
Extruder model	SJSZ80/156	SJ50/30+SJSZ80/156	SJSZ51/105+SJSZ65/132+SJSZ51/105	SJ50/30+SJSZ80/156+SJSZ65/132
Designed capacity	200-300kg/h	250-400kg/h	250-400kg/h	250-400kg/h
Dimension(mm)	28000x4000x3000

Details Images

Final product

AUXILIARY MACHINE:

Hot selling machine

Packing & Delivery

Before delivery, our workers will carefully pack the whole set machine to make sure safely arriving to customer's workshop. LCL (Less than Container Load) > WOOD CASE Packing + Cline Film Wrapped + Steel Tube Tray Fixed + Oil Against Rust Process FCL (Full Container Load) > Steel Tube and Wire Fixed + Cling Film Wrapped + Oil Against Rust Process

Company Profile

Qingdao Sanny Future International Trading Co., Ltd is located in Room 2305,Powerlong City square, Jiaozhou, Qingdao city Shandong province,and factory is located in Beiguan industrial park, Jiaozhou, Qingdao city Shandong province .Company has ten years of experience in the industry of plastic extruding, the main products include: all kinds of plastic different profile production line, all kinds of auxiliary plastic plate, sheet production line, plastic recycling (crushing, washing, granulation) line, centralized feeding system, such as plastic extrusion processing machinery and equipment production line.

The company has introduced from Europe a number of multi-station processing centers and CNC lathes, CNC milling machines and a large number of advanced high-precision processing equipment. Adhere to the comprehensive implementation of "zero defect" quality management, strengthen the procurement and supply, production technology, quality inspection, product sales, financial arrangements, after-sales service and other aspects of efficient quality control.

Combined plastic machinery's deep understanding of plastic extrusion technology and excellent metal processing capabilities make its quality unique. Long-term accumulated production debugging experience, grasp of new extrusion technology, and every link in production management comprehensively implement the ISO 9001:2008 and CE certification of quality management system, with the expansion of the scope of business, for the product quality and after-sales service for a full range of monitoring and management,
satisfy the customer the most stringent requirements, make us become your trustworthy partner.

Certification

FAQ

1.Q: If I need the machine urgently, what will you do? A: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing. 2. Q: If my machine can not work when I receive it, what will your factory do? A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine. 3. Q: If my machine is broken within one year, what your factory will do? A: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free. 4. Q: How can I believe your factory and machines. A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.
