Songhu multi-color ABS PLA filament extrusion line 3d printing filament extruder machine
1.Produce process
1)Before production,we will dry ABS or PLA raw material granule for about 40minutes-1hour;
2)Mixed with colors masterbatch or colors powder;
3)Adjust temperature and dragging rate,make filament diameter range at 1.6-1.8mm/2.8-3.0mm,roundness +/-0.05mm,each spool net weight 1kg +/-0.02kg.

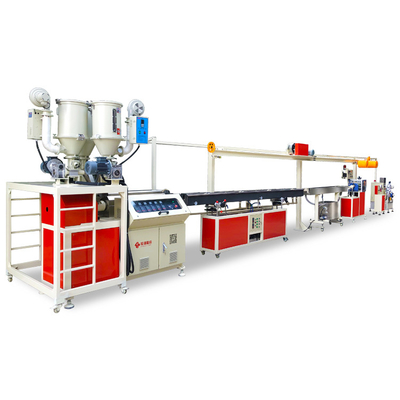

| The main part of 3D printer filament extruder machine | |||
| No. | Part name | Quantity | Specifications |
| 1 | SHSJ-45 with auto loader | 1set | 45mm screw |
| 2 | High precise extrusion mould(1.75mm/3.0mm) | 1set | Extrusion die is S136 |
| 3 | 4 Meter Automatic Circulation Heating Tank | 1set | SS304 |
| 4 | 2 Meters Cooling Water Tank | 1set | SS304 |
| 5 | independent drying device | 2set | special water sleeve ring |
| 6 | 8 meters Storage device | 1set | tension control |
| 7 | Laser LST-25X | 1set | tolerance +/-0.02mm |
| 8 | Four wheels Haul-off machine | 1set | precision guide pillar |
| 9 | Single station winding machine | 1set | Automatic metering,neaty winding |
1. Machine Part: Single screw extruder
-----Screw
------Diameter:Φ45mm
------L/D=28:1
------Material of screw: 38CrMoALA
-----Barrel
------Material:38CrMoALA
------Barrel inner-surface treatment
-----Heating zone and power: 3 zones, 2.2kw/zone
-----Driving motor: AC variable,delta inverter
2. Machine Part: Die head
------Material 38CrMoALA,inner surface with precision polishing after hard chrome plating
------Diameter:1.75mm and 3.0mm
------Mold heater:Stainless steel heater
3. Machine Part: Water tanks
-----Hot water tank:
------4m.Material:S/S.
------Circulation water tank.
-----Cold water tank:
------2m.Material:S/S.
------Circulation water tank.
------Water inlet;1 1/2'',stainless steel stop valve
------Water outlet:1 1/2",stainless steel stop valve
4. Drying Devices
Drying the water after being through the water tank
5. Laser controller system: (measure range:0.1mm-10mm)
It's available for testing the round shape wire,and the accuracy is controlled within +/-0.02mm.
6. Machine part:4 wheels tractor machine
-----Four wheels
-----Rubber raw material
-----Driving Motor and Delta inverter
7.Storage Device(Motor control:0.75KW)
A special magnetic partice clutch to control tension,storing 100meters filament at least.It wins more time to change the spool,and effectively prevent the wire falling into the ground.
8. Automatic Metering Device
It calculates the length of finished filament before winding.
9. Auto winding machine(motor power:0.75kw)
Tension control device and automatic cable winding,to make sure all of our filament will be neatly winding.
Finished product display
